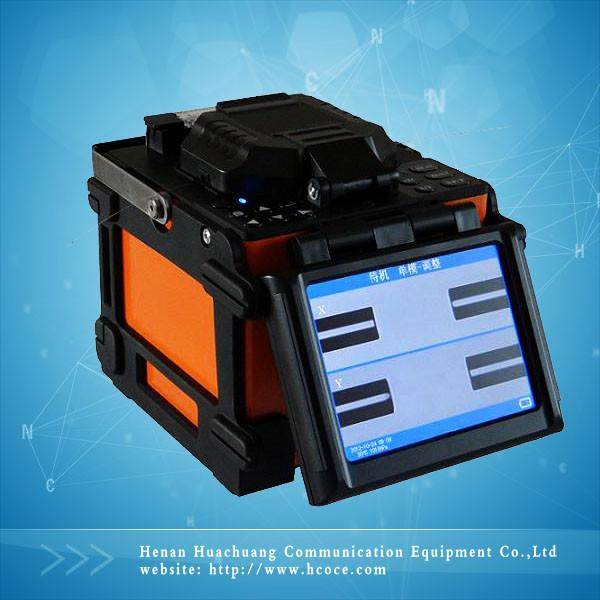

    optical fiber splicing machine fusion splicer price

    fiber optic splicing machine fiber optic equipment fiber optic splicer

    Features :

    According to the construction environment FTTH request design;
    A variety of skin line cable, jump line, SC connectors fiber jig, change simple;
    PAS image digital processing system,core or clad alignment is optioanl;
    The arc is calibrated by the environmental parameters as tempeture and pressure;
    Variety display group,the Maximum image magnification is 290;
    Typical splicing time is 8 seconds,26 seconds heating;
    Metro style GUI,easy to operate;
    Intelligence operate,auto heat or work when open the shield;
    High definition 5.7' colorful LCD;
    Hight to 4000 groups fusion records can be stored;
    Rubber armor protect machine body from shock or impact;
    High capacity,plug batteru,long work time;
    Software can be upgraded through USB port;


    Teachnical parameter:

    Applicable fiber typeSM(Single Mode),MM(Multi Mode),DS(Dispersion Shift),NZDS(Non Zero Dispersion Shift)
    Diameter of cladding80 -150um
    Diameter of coating160 - 900um
    Typical fusion lossSM 0.02dB,MM 0.01dB,NZDS 0.03dB, EZ-Bend 0.04dB
    Return lossBetter than 60dB
    Cutting length10~16mm(Diameter of coating < 250µm);16mm(Diameter of coating 250~1000µm)
    Fusion program40 groups
    Operate modeManual,Automatic
    Auto-HeatAvailable
    Typical fusion time8 seconds
    Heating time26 seconds for 60mm,40mm length heat shrinkable sleeve
    Magnification300 times for X|Y single display,150 times for XY double display
    Photoelectric systemTwo high sensitive cameras,5.7’640×480 pixel colourful LCD
    Fusion data recordStore 4000 groups fusion record
    Loss evaluationAvailable
    Pull testing1.8~2.2N
    InterfaceGUI menu interface,easy manipulation
    Battery capacity8800mAh,200 times of fusion and heating,hot plug,real-time power monitor
    Power supplyAdaptor,input:AC 100-240V(50/60HZ),output:DC 11~13.5V
    Electric pole lifetimeMore than 3000 times fusion,user can replace pole conveniently
    External portUSB2.0 port,used to derive fusion record data ,software upgrade
    Operate environmentAltitude;0~5000m;Relative humidity:0~95%;Temperature:-10℃~+50℃;Wind speed:max 15m/s
    Volume/Weight160mm(L)×150mm(W)×145mm(H) / 2.6kg

    Standard equipment

    Name

    Model NO

    Quantity

    Main machine

    HY-69

    1pc

    Fiber cleaver

    HY-70

    1pc

    Fiber stripper

    CFS-2

    1pc

    Electrodes

    HY-71

    1pr

    Cooling holder

    HY-72

    1pc

    Adapator

    HY-73

    1pc

    Power line

    HY-74

    1pc

    Carrying case

    HY-75

    1pc

    Straps

    HY-76

    1pc

    Keys

    HY-77

    1pr

    Maunal guide

    HY-78

    1pc
